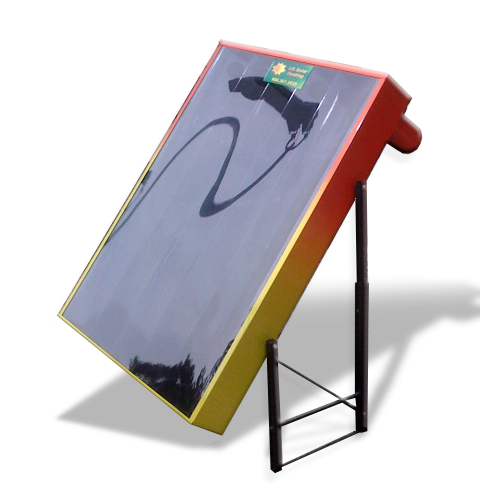

Solar heater Panel SH-7 (Single Unit)
Solar Air Heat Panel Tech Info:
| Size | 48 x 36 x 5 inch |
|---|---|
| Size by sq"ft |
12
|
| BTU per hour of Sun |
up to 2000
|
| Help to Heat Package |
25S, 30S, 50S, 75S, 90S
|
| Flow rate |
80 cfm
|
| Weight |
40 lbs +/-
|
| Color |
Custom Matched
|
| Power |
120V Outlet or Standalone Kit
|
| Temp |
up tp 130 F
|
| Control |
Thermostat or Standalone Kit
|
|
|
 |
|
|
 |
TEMP CHART (measured 8 ft from the panel outlet on the roof)
|
